1.Product introduction



Agricultural trailer rear axles are available in different lengths and hub faces, coated with standard black paint. Agricultural trailer rear axle seats and lug nuts can come loose with axle. Agricultural trailer rear axle assembly contains trailer axle beam with pressed in spindles and bolt mounted brake drum or rotor, hubs, bearings, grease cap, and grease seal, axle seats, and lug nuts.



2.Product parameter

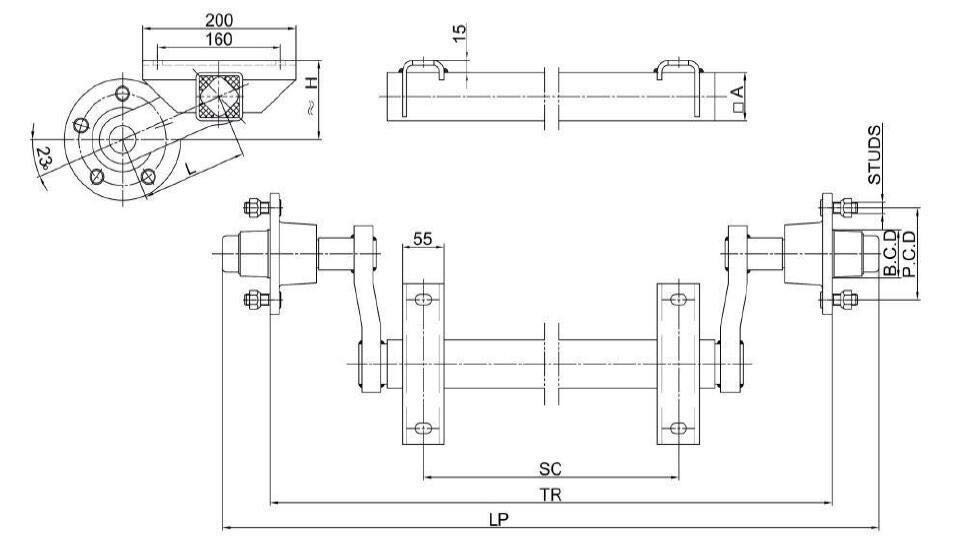

Capacity (T)	Track (mm)	Axle Beam (mm)	Brake lever position(mm)	Brake Spec.(mm)	Wheel Fixing(mm)	Bearing	Weight(Kg)
1	1600	¨40	no	no	4×M14×φ130×84	30205-20207	35
1.5	1600	¨45/○45	no	no	6×1/2"×φ139.7	LM68149/10 LM12749/10
2	1600	¨50/○50	no	no	6×1/2"×φ139.7	25580/20 15123/15245
3	1600	¨50	470	255×60	6×M18×φ205×160	30206-30209	65
5	1600	¨60	no	no	6×M18×φ205×160	30207-30211	60
5	1600	¨60	470	255×60	6×M18×φ205×160	30208-30211	100
6	1600	¨70	no	no	6×M18×φ205×160	30208-30213	85
6	1600	¨70	470	300×60	6×M18×φ205×160	30208-30213	120
The track can be customized according to customer's request.



3.Product feature and application



1) Agricultural trailer rear axle can be installed brake or not. If trailer axle doesn't install brake, it has hub only. Hub differs from markets, such as Australia style (5-4.25,5-4.5,5-4.75,6-5.5）and North America style (5-4.25,5-4.5,5-4.75,6-5.5). If trailer axle installs brake, it has drum brake and disc brake. If trailer axle is drum brake(Australia drum style is 9" and 10", PCD is 5-4.25,5-4.5,5-4.75,6-5.5, North America drum style 10" and 12", PCD is 5-4.5,6-139.7), brake system can be hydraulic and electric. If trailer axle is disc brake(normally it's 10" rotor, PCD 5-114.3), brake system need match with suitable caliper.



2) Lug quantity and PCD: 5 studs PCD 107.95MM,5 studs PCD 114.3MM，5 studs PCD 120.65MM，6 studs PCD139.7MM.



3) Rim sizes: 12", 13", 14", 15", 16"



4) Surface finishing: no, black coating, electrophoresis, hot galvanized, Dacromet.



5) Kits included: hub, bolts, nuts, bearings, seals, dust cover.



6) Bolt&nut sizes:1/2-20 or 7/16-20



7) Seal:all rubber three-lip seal or stainless water protecting seal.



8) Dust cover:stainless dust cover designed for hub.



9) Axle beam:cold draw φ40 round beam, cold draw φ45 round beam, cold draw φ50 round beam, cold draw φ60 round beam; hot rolling 40*40 square beam, hot rolling 50*50 square beam; cold draw 45*45 square beam, cold draw 50*50 square beam.



10) Special requirements: Logo or marking on hub can be done as required, bolt diameter and PCD can be customized as required.



4.Product qualification



1) Chongqing Xianyou Technology Development Co., Ltd. was founded on 26 Nov., 1998, lied in No.6 Dongshan Road, Area B Jiulongpo Industrial Zone Chongqing City. It’s a high level of professionalism in the gearbox sector and produces a wide range of products with multiple performances for tricycle, UTV, ATV, Golf car, trailer etc.

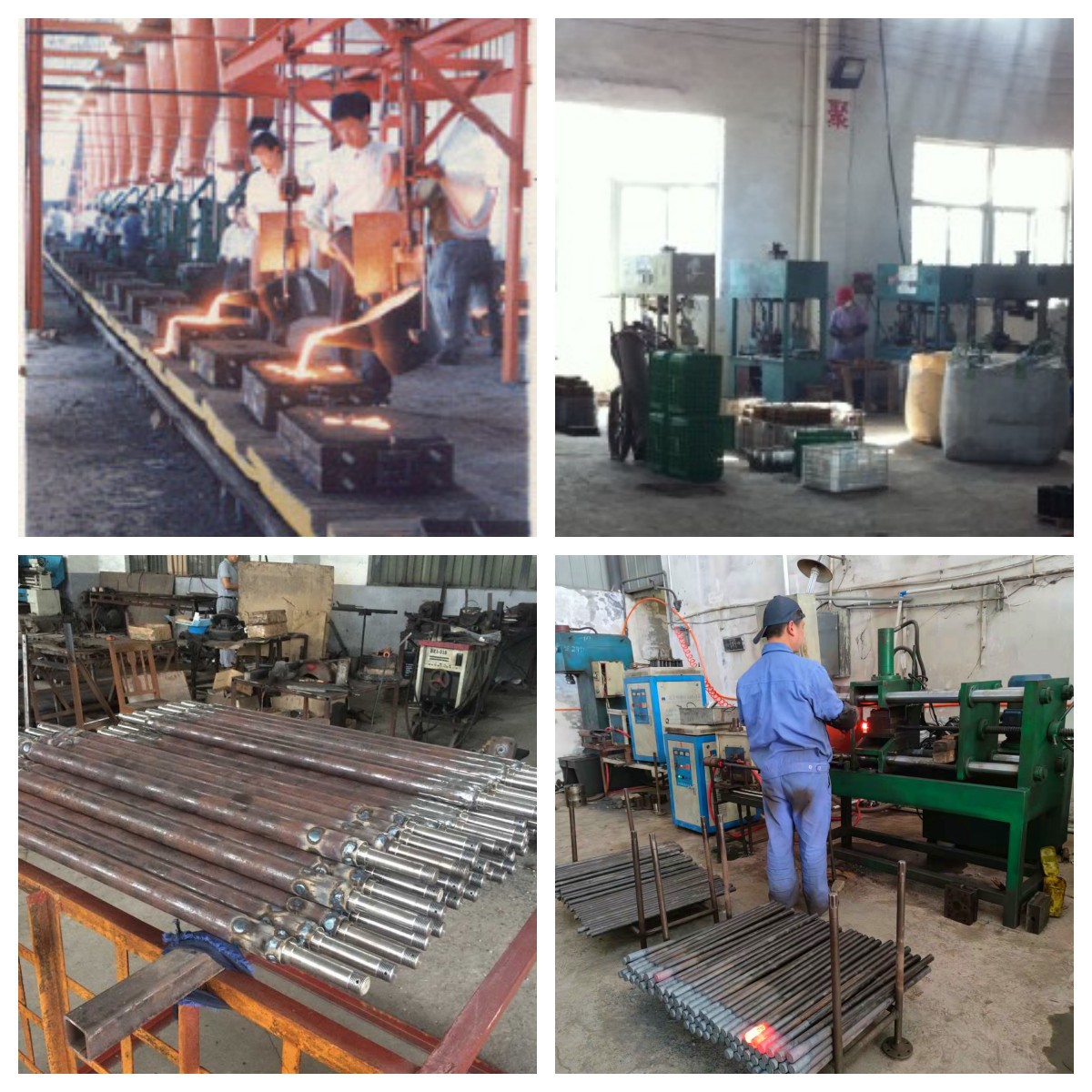

2) Company invests a lot on machines to ensure high quality products, such as three 3-ton medium frequency induction melting furnaces, automatic moulding and pouring devices, roller sand mixing machine, shell core shooters, shot blast, painting, CNC machining , inspection & testing centre etc.

3) With a history of 25 years, company has been rewarded many certificates and honors, accredited by ISO9001:2015 quality management system in 2003; rewarded standardization AA enterprise in 2008; rewarded “trusted enterprise” by Chongqing administrative bureau for industry and commerce many times from 2009 till now as well as “High-tech” enterprise; approved “important supported enterprise by Chongqing government” in 2010; accredited “Chongqing innovation pilot enterprise” in 2011; reverse gearbox approved “ Chongqing famous brand” in 2013; accredited by ISO/TS 16949:2009 quality management system in 2014.



5. Packing, shipping and serving

Agricultural trailer rear axle packing methods are available according to different requirements. Customers can choose wooden box packing, paper carton packing or any packing as requested.



6. FAQ



1) Are you manufacturer?

Yes. We are one of leading manufacturers in axle design&development.



2)  Do you have stock products to sell?

Yes, a few. And we also offer OEM&ODM service. Please send us your drawing.



3)  What information needed to get rear axle quotation?

a). Trailer max loading.

b). Pictures of your rear axle from different views.

c). Packing&Shipping requirements.

d). Quantity needed.

4) Do you inspect the finished products?

Yes. Each step of production will be carried out inspection by QC department until finishing.
