Heavy Duty Full Floating Tricycle Rear Axle With High Low Gearbox For APSONIC Cargo Tricycle AP150 AP175 AP200
3 Wheel Motorcycle Tuk Tuk With 350CC Engine
Product Introduction

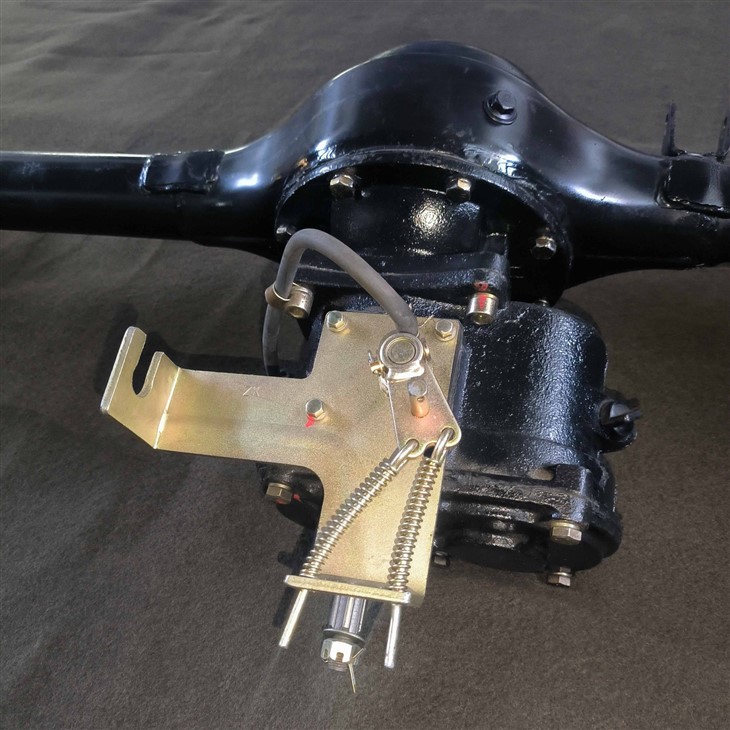

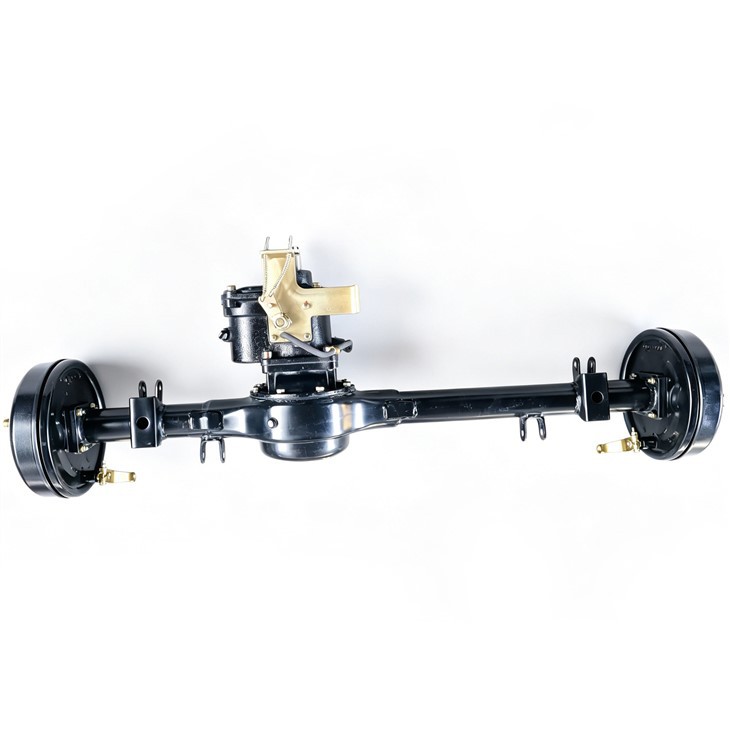

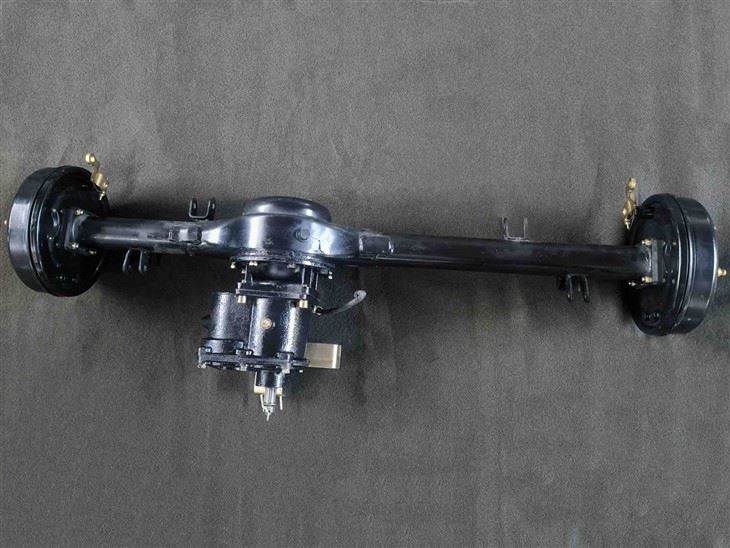

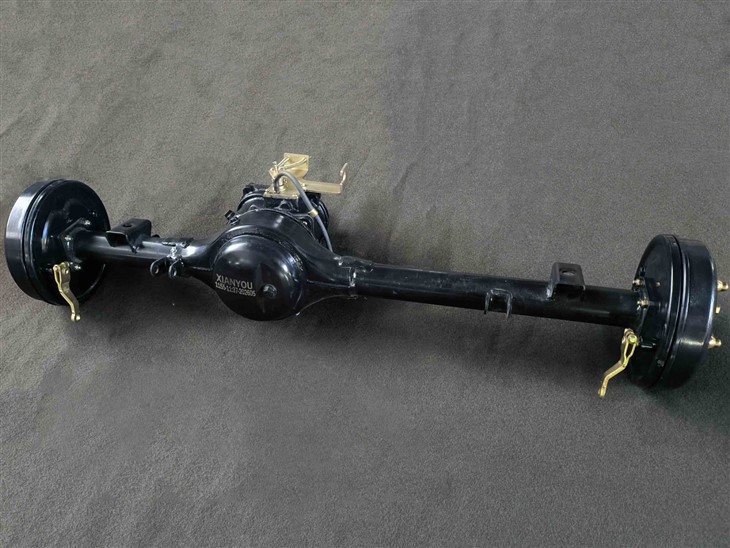

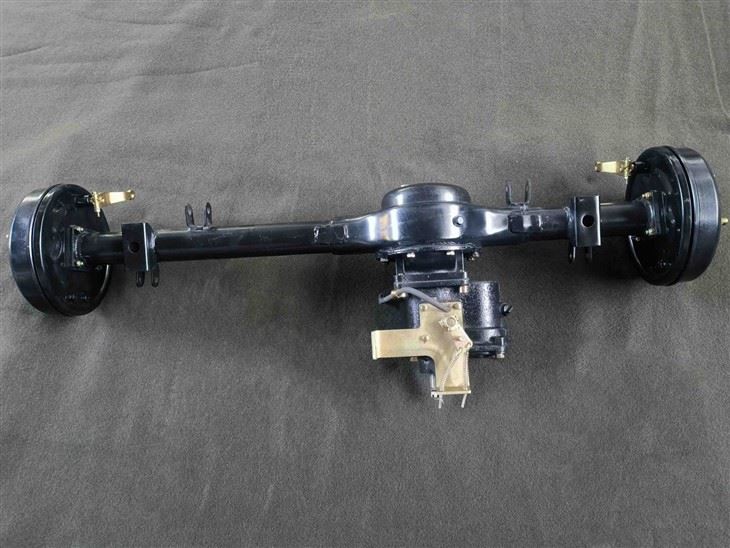

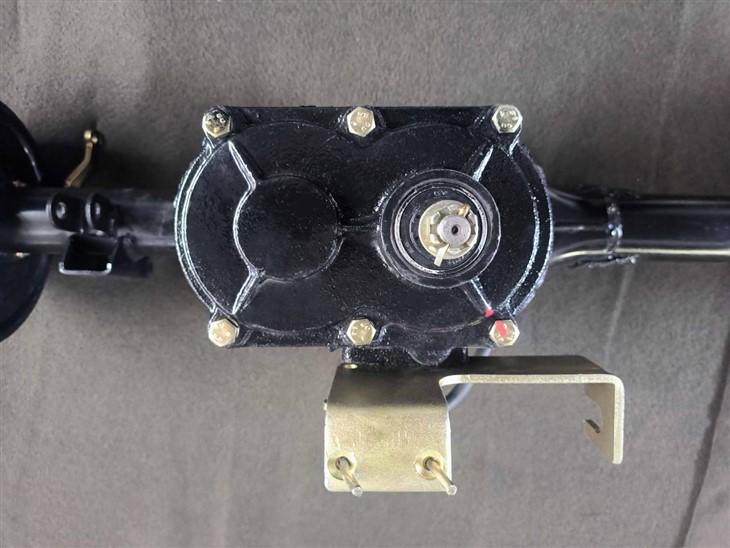

Heavy Duty Full Floating Tricycle Rear Axle With High Low Gearbox For APSONIC
Cargo Tricycle AP150 AP175 AP200
| Structure | 3/4 Full floating |
| Loading Bearing | 6008RS |
| Brake | Drum brake |
| Length of rear axle | 1155mm |
| Ratio | 11:37 |
| Input spline | 20*17*4 |
| Axle Tube Material | 60*4(GB/T8162-1999 seamless steel tube) |
| Body Material | Ductile Iron |
| Gear Material | 20CrMnTi |
| Gear Modulus | 3.5mm-4.5mm |
| Rim lock bolt | 5-M14*1.5 right and left threaded |
| Speed | 2-speed |
| PCD | 5*140 |
| CB | 110mm |
| Offset | 120mm |
| Delivery | Within 30days |
| Load capacity | <=1T |

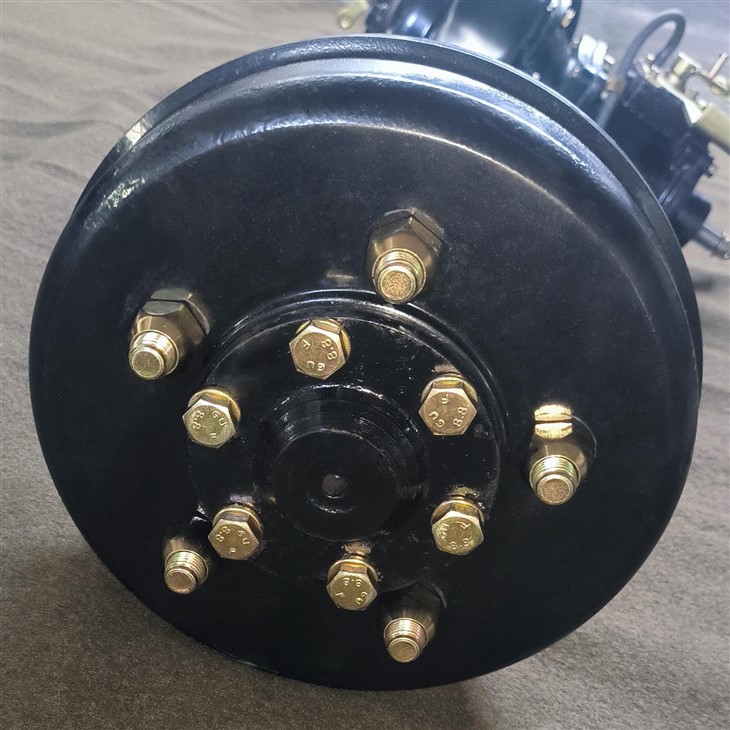

| Wheel hub diameter | 180mm/220mm |
| Net weight | 48.55kgs |
| Fit engine | from 50cc--400cc |
| Application | Tricycle/rickshaw/small truck/ATV/UTV/Buggy/Go cart |
| Brand | XIANYOU |
| track width: | 1130MM |
| Lubrication Oil | GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
