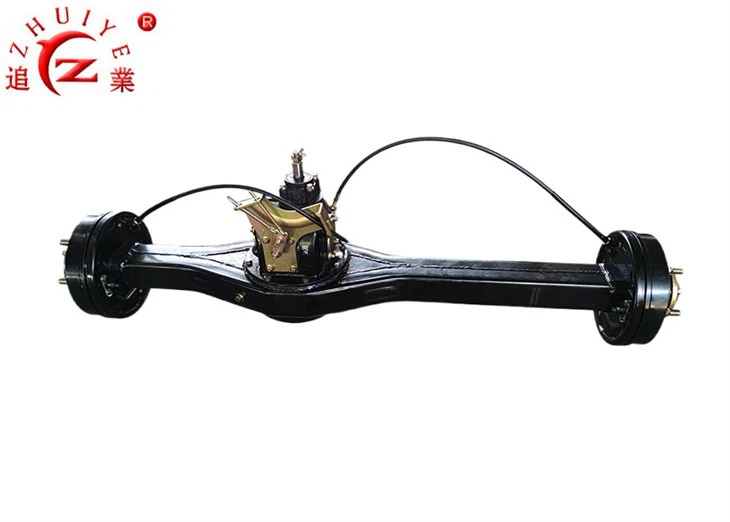

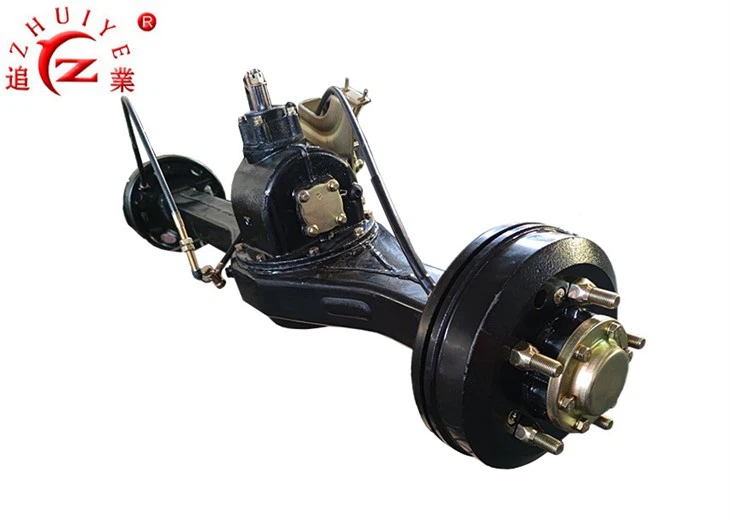

Gasoline Rear Axle Assembly for Trucks and SUVs

1. Product introduction



When we talk about trucks, most of us tend to focus on the engine, horsepower, and payload capacity. However, it is the rear axle of the truck that bears the brunt of the weight and power, making it one of the most crucial components of the vehicle. Here below, we will present our rear axle of truck, exploring its design, functionality, and practicality.

The design of our truck rear axle is primarily driven by the load capacity that the vehicle is expected to carry. The rear axle is engineered to distribute the weight evenly across the axles, transferring it to the wheels and the road. The rear axle consists of several components such as the differential, driveshaft, pinion gears, and axle shafts, all working together to provide the necessary torque and power.

One of the key design features of the rear axle is the ratio of the gear, which determines the speed at which the truck travels. A higher gear ratio means that the truck will travel at a slower speed but with more towing power, while a lower gear ratio results in a higher speed but with less power. The design of the rear axle takes into account the different types of terrains and loads that the truck will encounter, ensuring that it can handle the expected weight and environment.

The primary function of the rear axle is to transfer the torque from the engine to the wheels, enabling the truck to move forward. The rear axle also assists in the steering of the truck, making it easier for the driver to control the vehicle. The reasonable axle housing design is also an important factor in the functionality of the rear axle, as it helps to absorb the shocks and vibrations that come with heavy loads and rough terrains.

Also, the design of the rear axle has evolved to cater to the specific needs of different industries. For instance, heavy-duty trucks that transport construction materials require sturdy rear axles that can carry the weight of the load and operate in rough terrains. On the other hand, delivery trucks that transport perishable goods require a rear axle that operates smoothly and efficiently to ensure timely delivery.

The truck rear axle is one of the most practical components of the vehicle. The design of the axle takes into account the various load and terrain requirements, making it a reliable and versatile part of the truck. Furthermore, we have invested a lot in research and development, leading to the production of axles that can last for years with minimum maintenance.

The truck rear axle might seem like a small component, but it plays a vital role in the performance and efficiency of the vehicle. And the practicality and reliability of the rear axle are a testament to the innovation and engineering prowess of our factory.

2 Product parameter

Structure	Full floating
Loading Bearing	32009 tapered bearing
Brake	Oil brake
Length of rear axle	1200mm (From hub to hub)
Ratio	H:2.83 L:6.59; H:3.76 L:8.75 etc.
Input spline	20*17*4
Tube material	70*85*5 steel square tube
Body Material	Ductile Iron
Gear Material	20CrMnTi
Gear Modulus	3.5mm-4.5mm
Rim lock bolt	5-M14*1.5 right and left threaded
Speed	2 speed
PCD	5*140
CB	110mm
Offset	120mm
Delivery	Within 30days
Load capacity	<=3T
Wheel hub diameter	220mm
Net weight	75kgs
Fit engine	from 50cc--400cc
Application	Tricycle/rickshaw/small truck
Brand	Zhuiye
Lubrication Oil	GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil

3 Product feature and application

1) High-quality rear axle for optimal performance: Our rear axle is designed to deliver top-notch performance for a smooth and stable driving experience. Built with exceptional quality and attention to detail, our rear axle ensures reliable strength and durability.

2) Improved handling and control: With our rear axle, you can expect improved handling and control on the road. Whether you're navigating tight turns or cruising at high speeds, our rear axle delivers superior handling to ensure a safe and enjoyable driving experience.

3) Enhanced traction and stability: Our rear axle is engineered to provide enhanced traction and stability, keeping your vehicle firmly planted on the road. With improved grip and stability, you can enjoy greater confidence behind the wheel, even in challenging driving conditions.

4) Easy installation and maintenance: Our rear axle is designed for easy installation and maintenance, meaning you can get your vehicle back on the road quickly and easily. With simple maintenance requirements, our rear axle is also cost-effective and hassle-free.

Customizable options for a perfect fit: We offer customizable rear axle options to ensure a perfect fit for your specific vehicle model and driving style. Our professional team can help you select the right rear axle to meet your needs and preferences, ensuring optimal performance and satisfaction.

4  Advantages

1) Our rear axle is designed to provide the durability and strength your vehicle needs to handle any terrain. Made with high-quality materials, our axles are built to last.

2) Offering exceptional performance on and off the road, our rear axle is the perfect choice for your vehicle. With its superior construction, you can trust that it will provide the power and stability you need to take on any challenge.

3) When it comes to reliability and durability, our rear axle is second to none. Built to withstand the toughest conditions, our axles are the perfect choice for drivers who demand the best.

4) Our rear axle is designed with precision and care to provide the ultimate in performance and strength. With its superior construction and high-quality materials, you can rely on it to get the job done right.

5) Whether you're driving through rocky terrain or tackling steep inclines, our rear axle is up to the task. Built with the highest standards of quality and durability, it will provide the power and stability you need to conquer any challenge.
