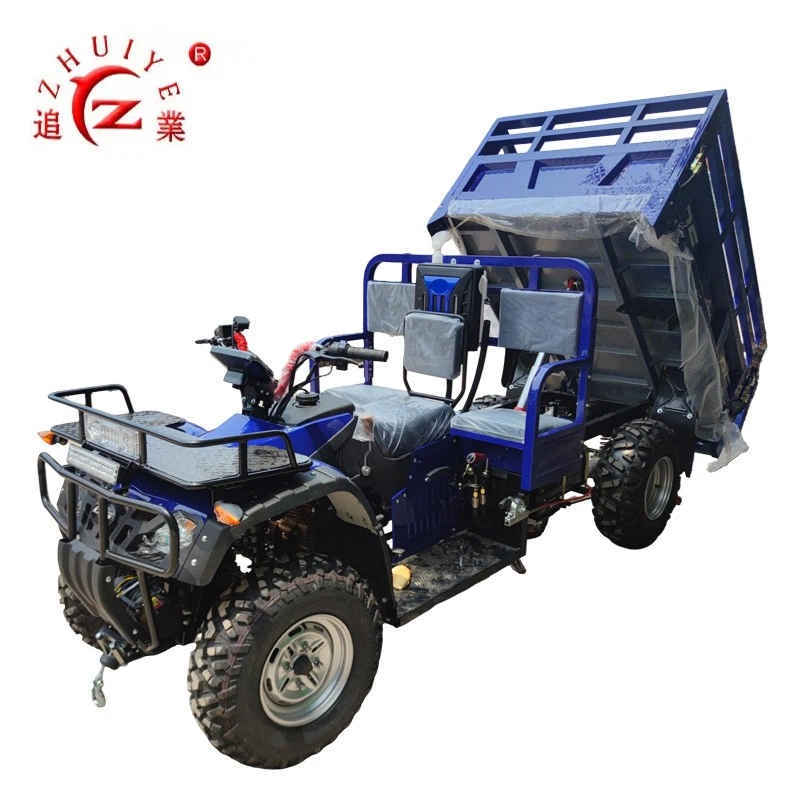

300CC CVT Utility Cuatrimoto Farm ATV

The 300CC engine provides moderate power. It can handle normal farm transport tasks, like carrying agricultural products and supplies on field and rural roads, and work on non - steep slopes. The cargo bed usually has a three - side - open design for easy loading and unloading. Some have a hydraulic tipping function. Operating the hydraulic device can tilt the bed for automatic unloading, increasing efficiency and reducing labor.

Product Introduction

Dimensions (L*W*H) : 3330*1200*1450mm
Cargo Box Size (L*W*H) : 1800*1200*500mm
Displacement: 300cc
Max. Power: 12.5kW/6500rpm
Max. Torque: ZSCG300 17. 5N.m/5000rpm
Spread of axles: 1650mm
Minimum ground clearance: 173mm
Minimum turning radius: 3500mm
Maximum speed: ≤75km/h
Front Hub Type: 5. 5*10
Rear Hub Type: 8. 0*10
Front Wheel Size: 22*8-10
Rear Wheel Size: 22*10-10
Gradeability: ≥20°
Tank volume: 9. 5L
Economy Speed Fuel Consumption: 6. 5L/100km
Starting Performance: ≤15s
Net Weight (kg) : 340kg
Rated load (kg) : 500kg
Battery Specifications: 12V36Ah
